是封面

烟花来咯!

今年的海灯节没有烟花,比较遗憾,于是计划在MC中做一个烟花数据包,结果拖到了四月份(

演示

使用数据包提供的API函数,可以很方便地制作烟花,数据包提供多项可选参数以丰富烟花效果
详细参数说明见文章末尾

首先,通过设置不同的物理属性和条件限制,可以做出不同的抛物线扩散效果
这样做将会生成数条抛物线,数量由参数n控制
参数t控制每条抛物线的存在时间

mcfunction
function sklibs:skfirework/fx/spread {
  config:{
   yaw:[-50,-10],
   pitch:[30, 80],
   t: [20,60],
   n: 60,
   v: 0.5,
   g: 0.04,
   tick_cmdv:[{cmd:"particle flame ~ ~ ~ 0 0 0 0 1 force"}]
   cmdv:[]
  }
}

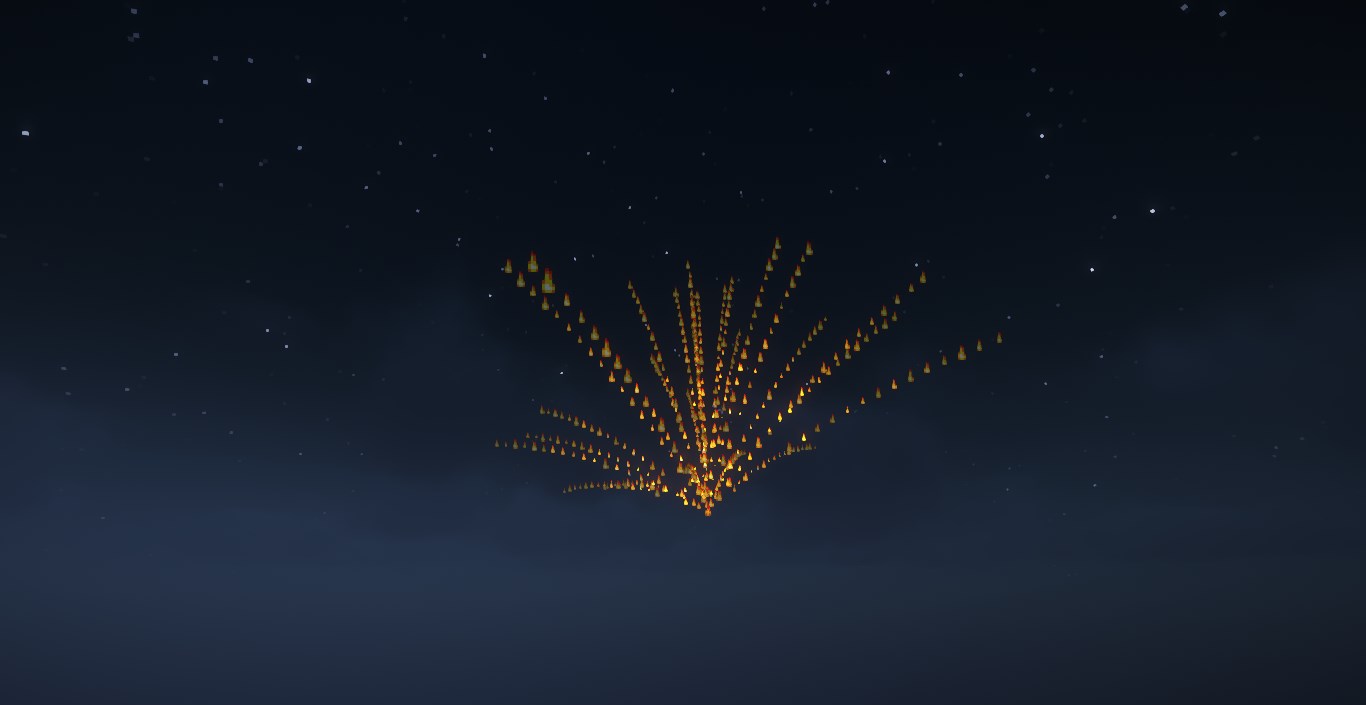

v=0.5 g=0.01
烟花1

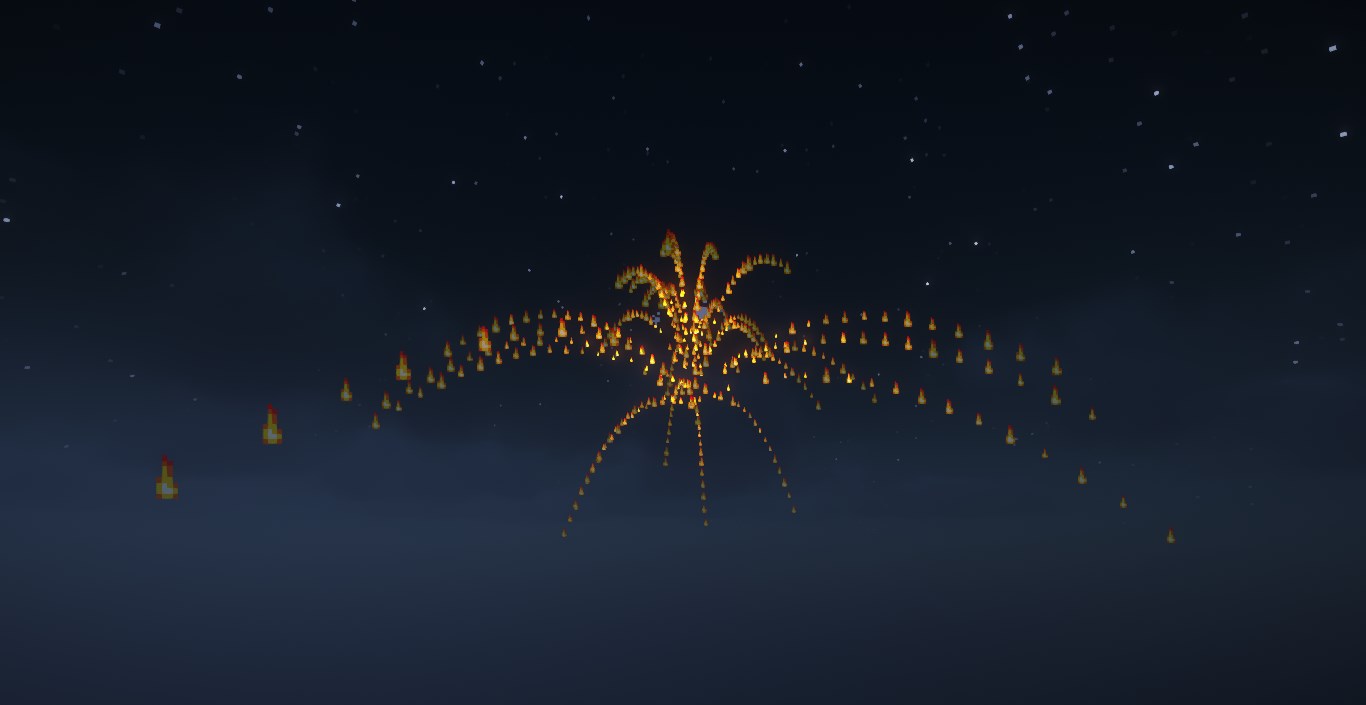

v=0.5 g=0.04
烟花2

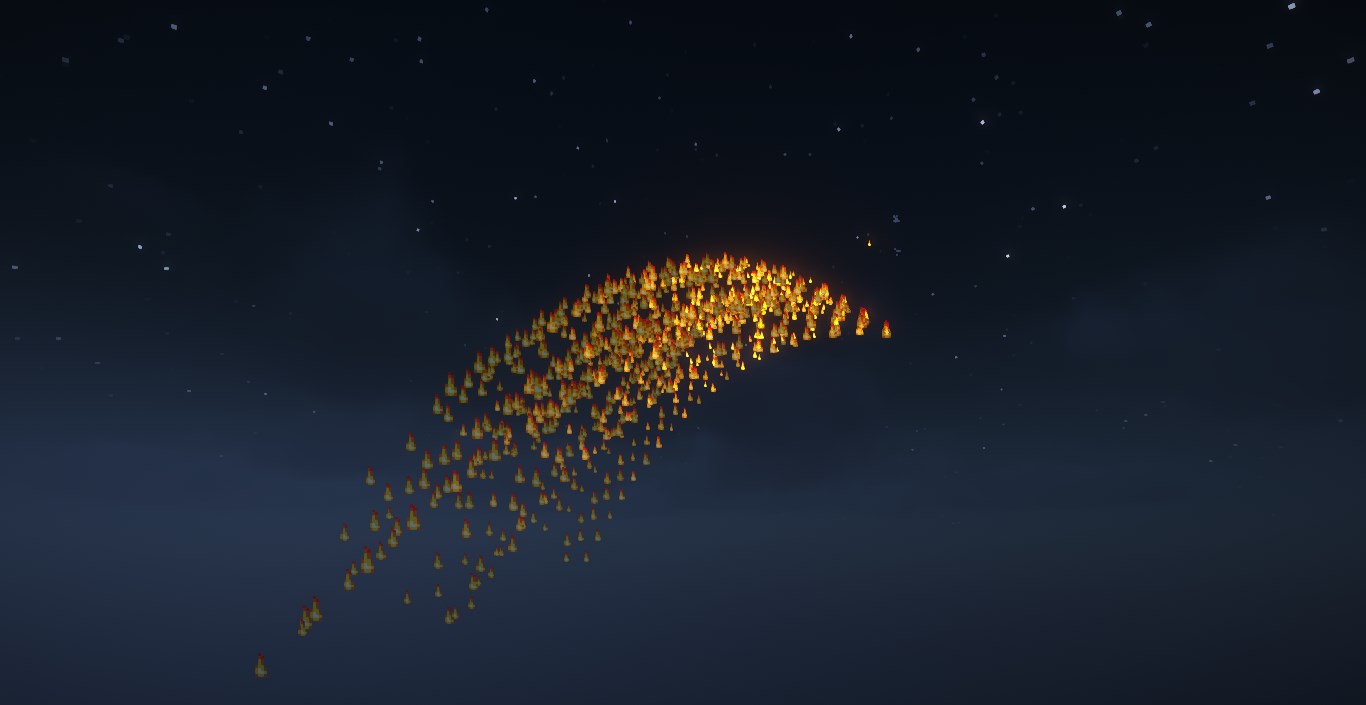

v=0.5 g=0.04 yaw∈[-50,-10] pitch∈[30,80]
烟花3

然后,让每一条抛物线在已存在时间减为0时生成firework

mcfunction
function sklibs:skfirework/fx/spread {
  config:{
   yaw:[-50,-10],
   pitch:[30, 80],
   t: [20,60],
   n: 60,
   v: 0.5,
   g: 0.04,
   tick_cmdv: [{cmd:"particle flame ~ ~ ~ 0 0 0 0 1 force"}],
   cmdv: [{
    cmd: "function sklibs:skfirework/fx/firework",
    args:{
      config:{
       shape: 0,
       colors: [{from:[I;13047173],to:[I;16761035]},{from:[I;16711680],to:[I;10824234]}],
       n: 1
      }
    }
   }]
  }
}

可以观察到上述命令添加了如下的参数 当抛物线已存在时间减为0时,将执行参数cmdv中的函数事件,调用sklibs:skfirework/fx/firework函数生成烟花,其中args是函数的参数

snbt
cmdv:[{
  cmd:"function sklibs:skfirework/fx/firework",
  args:{
   config:{
    shape:0,
    colors:[{from: [I;13047173],to: [I;16761035]},{from: [I;16711680],to: [I;10824234]}],
    n:1
   }
  }
}]

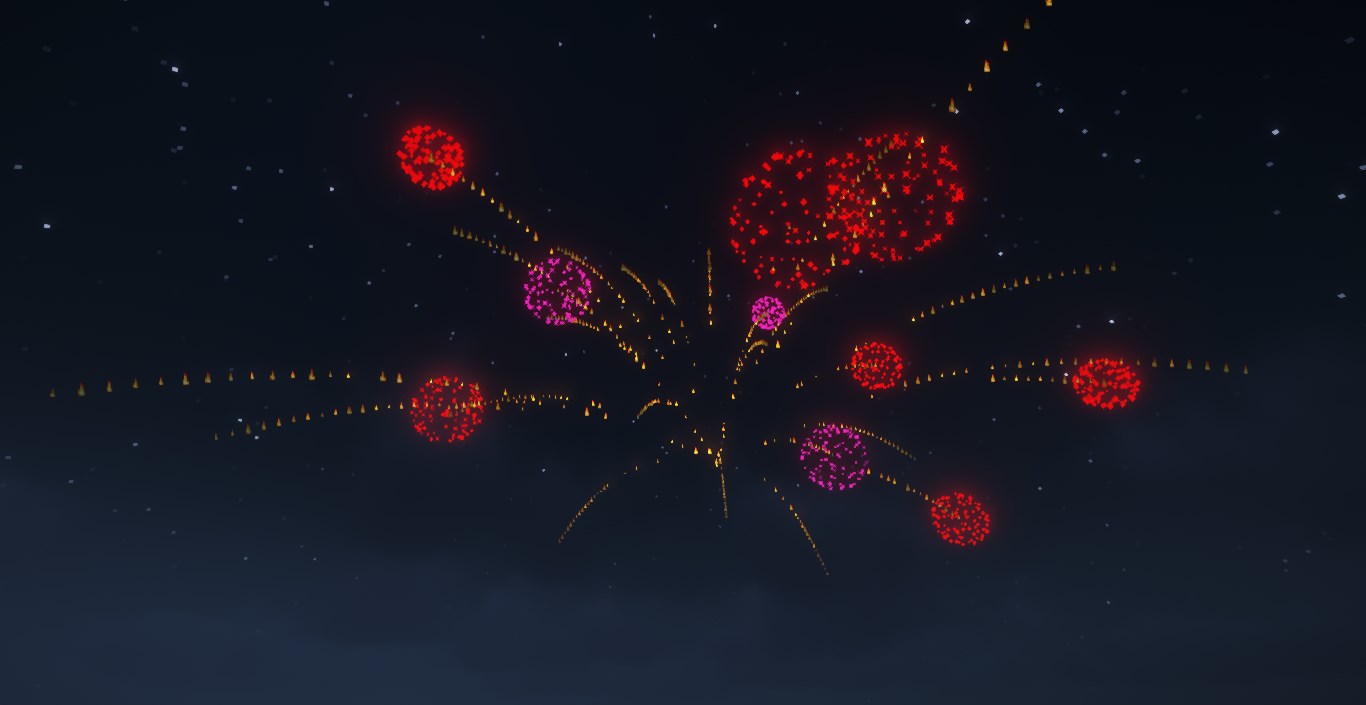

效果如图所示
烟花4

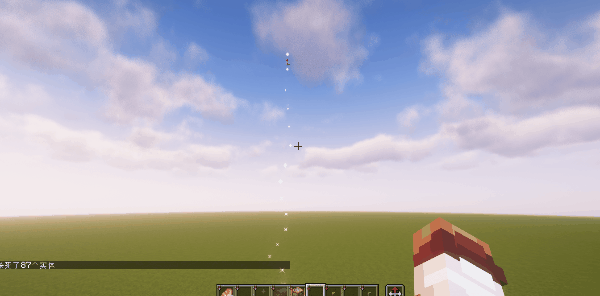

此时,我们的烟花会在命令执行瞬间爆炸,但是烟花应该上升一段距离才会爆炸,使用launch函数控制烟花的延时

mcfunction
function sklibs:skfirework/fx/launch {
  config: {
   life: 50,
   cmdv: [
    {
      cmd: "function sklibs:skfirework/fx/spread",
      args: {
       config: {
         n: 30,
        v: 0.5,
        g: 0.04,
        tick_cmdv: [{cmd:"particle flame ~ ~ ~ 0 0 0 0 1 force"}],
        cmdv: [
          {
          cmd: "function sklibs:skfirework/fx/firework",
          args: {
           config: {
            shape: 0,
            colors: [
              {from: [I;13047173],to: [I;16761035]},
              {from: [I;16711680],to: [I;10824234]}
            ],
            n: 1
           }
          }
        }]
       }
      }
    }]
   }
  }

示例:给烟花增加TNT爆炸效果和音效
烟花4

mcfunction
function sklibs:skfirework/fx/launch {
  config:{
   life: 50,
   cmdv: [
    {cmd: "playsound minecraft:entity.firework_rocket.large_blast ambient @a ~ ~ ~ 1000"},
    {cmd: "summon tnt ~ ~ ~"},
    {cmd: "summon tnt ~ ~ ~"},
    {cmd: "summon tnt ~ ~ ~"},
    {cmd: "summon tnt ~ ~ ~"},
    {cmd: "function sklibs:skfirework/fx/spread",
    args: {config: {
      n: 30,
      v: .5,
      g: 0.04,
      tick_cmdv: [{cmd:"particle flame ~ ~ ~ 0 0 0 0 1 force"}],
      cmdv: [
       {cmd: "summon tnt ~ ~ ~"},
       {cmd: "function sklibs:skfirework/fx/firework",
       args: {config:{
       shape: 0,
       colors: [{from:[I;13047173],to:[I;16761035]},{from:[I;16711680],to:[I;10824234]}],
       n: 1
      }}}]
   }}}]
  }
}

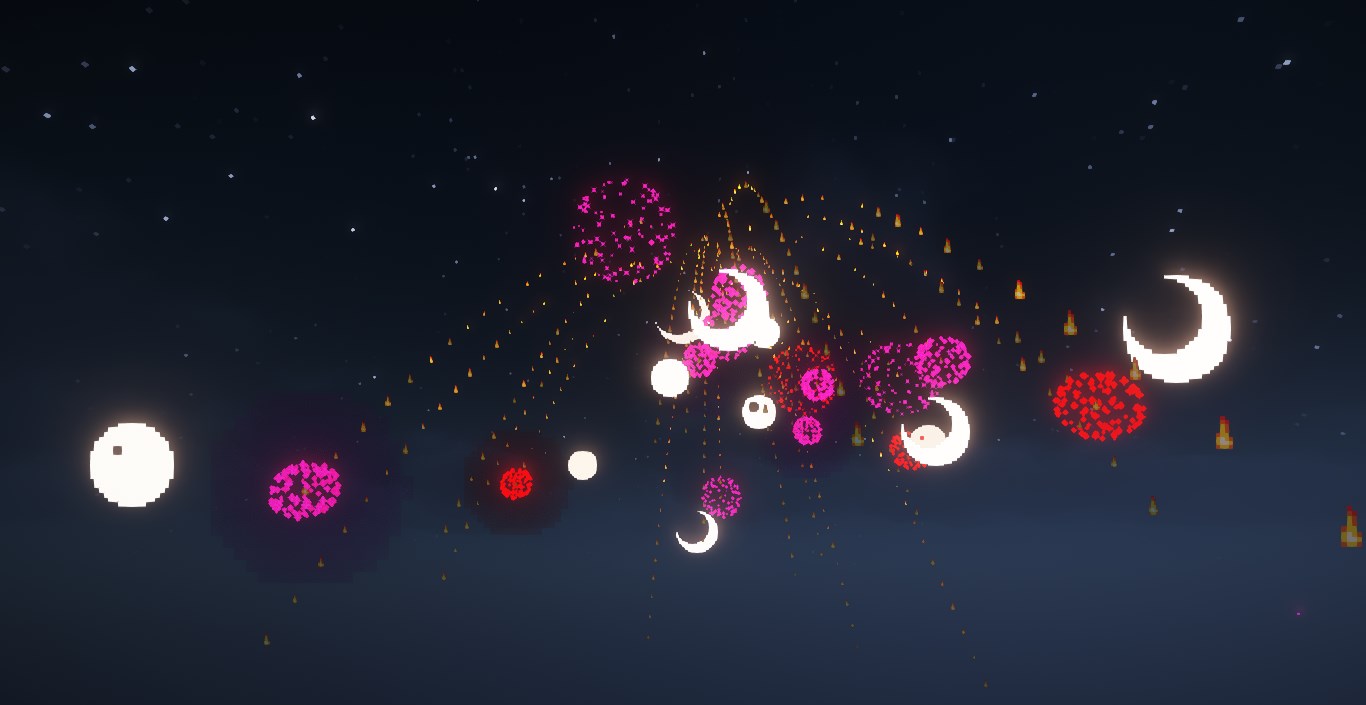

示例:可以二次扩散的烟花

mcfunction
function sklibs:skfirework/fx/launch {
  config: {
   life: 30,
   cmdv: [
    {cmd: "playsound minecraft:entity.firework_rocket.large_blast ambient @a ~ ~ ~ 1000"},
    {cmd: "function sklibs:skfirework/fx/spread",
    args: {config: {
      t: [40,70],
      n: 6,
      v: 1,
      g: 0.02,
      tick_cmdv: [{cmd:"particle dragon_breath ~ ~ ~ 0 0 0 0 1 force"}],
      cmdv: [
       {cmd: "playsound minecraft:entity.firework_rocket.large_blast ambient @a ~ ~ ~ 1000"},
       {cmd: "summon tnt ~ ~ ~"},
       {cmd: "function sklibs:skfirework/fx/spread",
       args: {config: {
        n: 30,
        v: 0.5,
        g: 0.01,
        tick_cmdv: [{cmd:"particle flame ~ ~ ~ 0 0 0 0 1 force"}],
        cmdv: [
          {cmd: "function sklibs:skfirework/fx/firework",
          args: {config: {
          shape: 0,
          twinkle: 1,
          colors: [{from:[I;13047173],to:[I;16761035]},{from:[I;16766720],to:[I;16777184]}],
          n: 1
        }}}]
      }}}]
   }}}]
  }
}

示例:猪烟花(喜闻乐见
猪烟花

mcfunction
function sklibs:skfirework/fx/launch {
  config: {
   life: 30,
   cmdv: [
    {cmd: "playsound minecraft:entity.firework_rocket.large_blast ambient @a ~ ~ ~ 1000"},
    {cmd: "function sklibs:skfirework/fx/spread",
    args: {config: {
      n: 30,
      v: 0.5,
      g: 0.01,
      tick_cmdv: [{cmd:"particle end_rod ~ ~ ~ 0 0 0 0 1 force"}],
      cmdv: [
       {cmd: "summon pig ~ ~ ~ {CustomName:\"猪猪\",CustomNameVisible:true}"},
       {cmd: "function sklibs:skfirework/fx/firework",
       args: {config: {
       shape: 0,
       colors: [{from:[I;13047173],to:[I;16761035]},{from:[I;16766720],to:[I;16777184]}],
       n: 1
      }}}]
   }}}]
  }
}

数据包下载

游戏版本: 1.21.4
数据包版本 1.0

1.21.4_SK_Firework_1.0.zip
1.21.4_SK前置包_Alpha.zip
(关于前置包,目前处于开发状态,基本完成后会写文章介绍)

API函数

sklibs:skfirework/fx/launch 烟花启动函数,用于制做烟花升空阶段

NBT Icon

sklibs:skfirework/fx/spread
烟花扩散函数

NBT Icon

sklibs:skfirework/fx/firework
烟花生成函数,根据参数生成指定样式的原版烟花

NBT Icon
